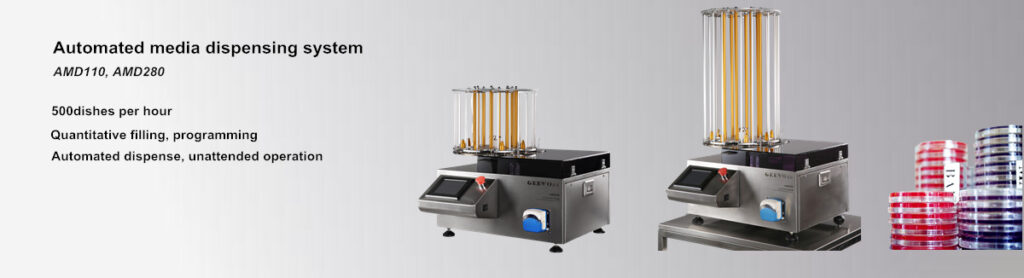

Automated Media Dispensing System
Type: AMD110, AMD280
For laboratories involved in culture media preparation, sterile dispensing is essential for successful downstream applications and to meet quality requirements. Furthermore, as a growing need for cost saving and performance improvements exists, a reliable work flow is necessary. These requirements create a strong demand for medium dispensing system that allows reliable operation and at the same time fulfills quality requirements. AMD series and HMD series are developed to meet these needs.
Solve existing problem
1. Dispensing media by person —Non-uniformity dose, heavy working intensity, poor efficiency and easy contamination.
2. Purchase prepared media —High cost, short shelf life(max. not more than 6 months), frequency purchase, high storage requirement for transportation(2- 25 degree protect from light), especially, required for cold-chain transportation.
3. Media dispensing system —Automated dispensing, high efficiency, eliminating source of contamination, solve the limited condition problem of big batch storage and transportation.

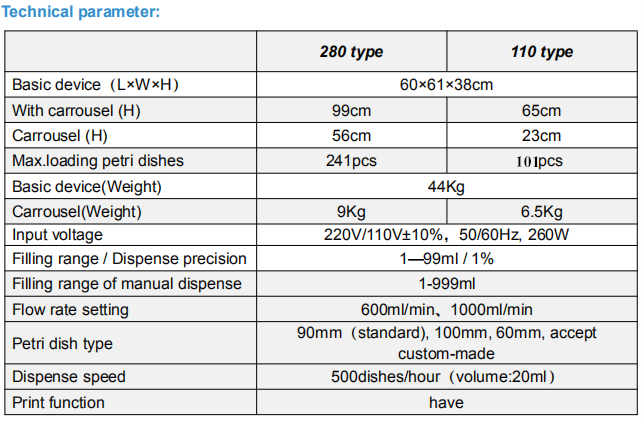

Parameter and Feature

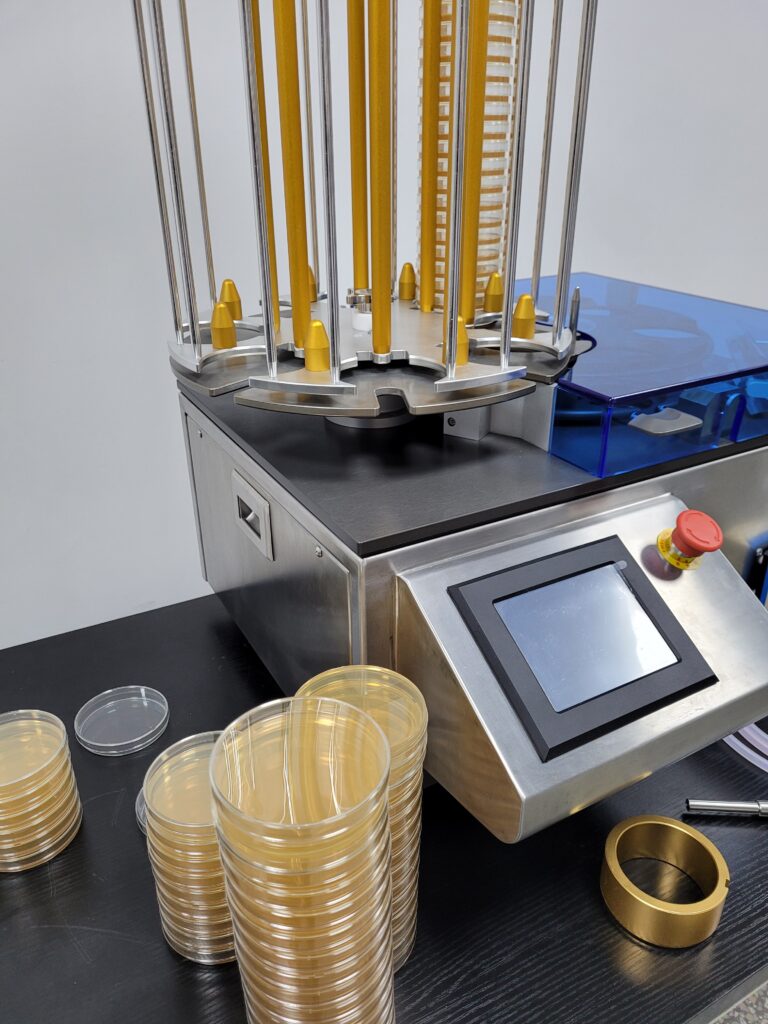

1. Composed by three parts: Main control system, rotor system and carrousel.
2. 5.7inch touch screen and intelligent operation system, easy handling.
3. Special feed support for empty dishes, avoiding jam during down into the feed position.
4. The material of rotor and carrousel are adopts hard aluminum alloy, easy to disassemble.
5. Two types of carrousel for choice: 110 and 280 (accept customized).
6. The dispensing area is protected by UV rays, reduce the risk of containment.
7. Dispensing volume from 1-1000ml, its precision is less than 1%. Dispensing 280 petri dishes in less than 30 minutes.
8. Fast calibrate dispensing volume, can set parameter as need for suitable dispensing program, and different dispensing programs can be stored.
9. Manual dispense function can set dispense volume, dispense times and dispense time interval.
10. Adopts curved spring plate in the carrousel which is easy for unloading dishes.
11. Having fault alarm and self-check function, fast to find fault and repair.

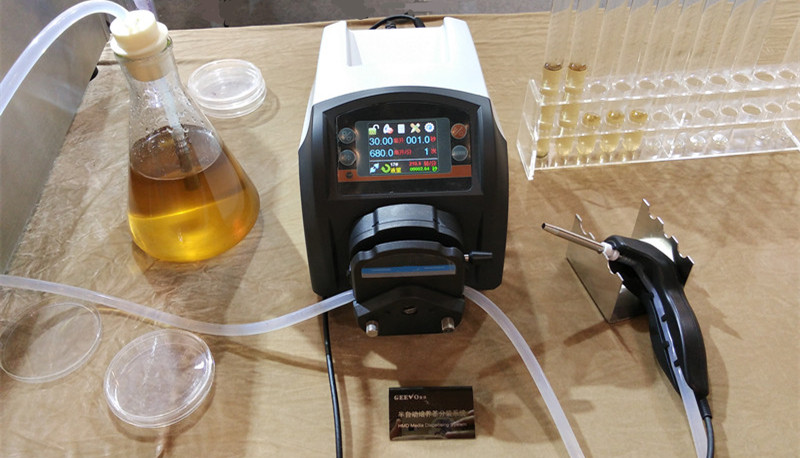

Semi-automated HMD1 Media Dispenser
HMD1
HMD series semi-automated media dispensing device can dispense media, agar , buffer and other liquid. Instead of pouring by hand, high precision avoiding non-uniformity dose, reduce the risk of contamination, and high efficiency.

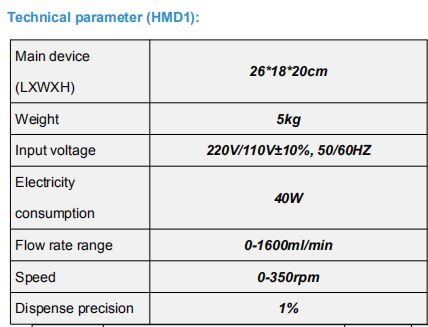

Parameter and Feature
◎ Three modes: Continuous dispensing, single dispensing and multiple dispensing.
◎ The intuitive and full size graphical user interface makes it easy to control functions. Can store 30 types of dispensing program.
◎ Supply pedal switch, convenient for control.
◎ Suitable for petri dish, tube and other containers.
◎ Setting with system calibration program. Its operation is to confirm precise dispensing volume.
◎ Dispensing volume from 1-1000ml, its precision is less than 1%.
